Product Profile

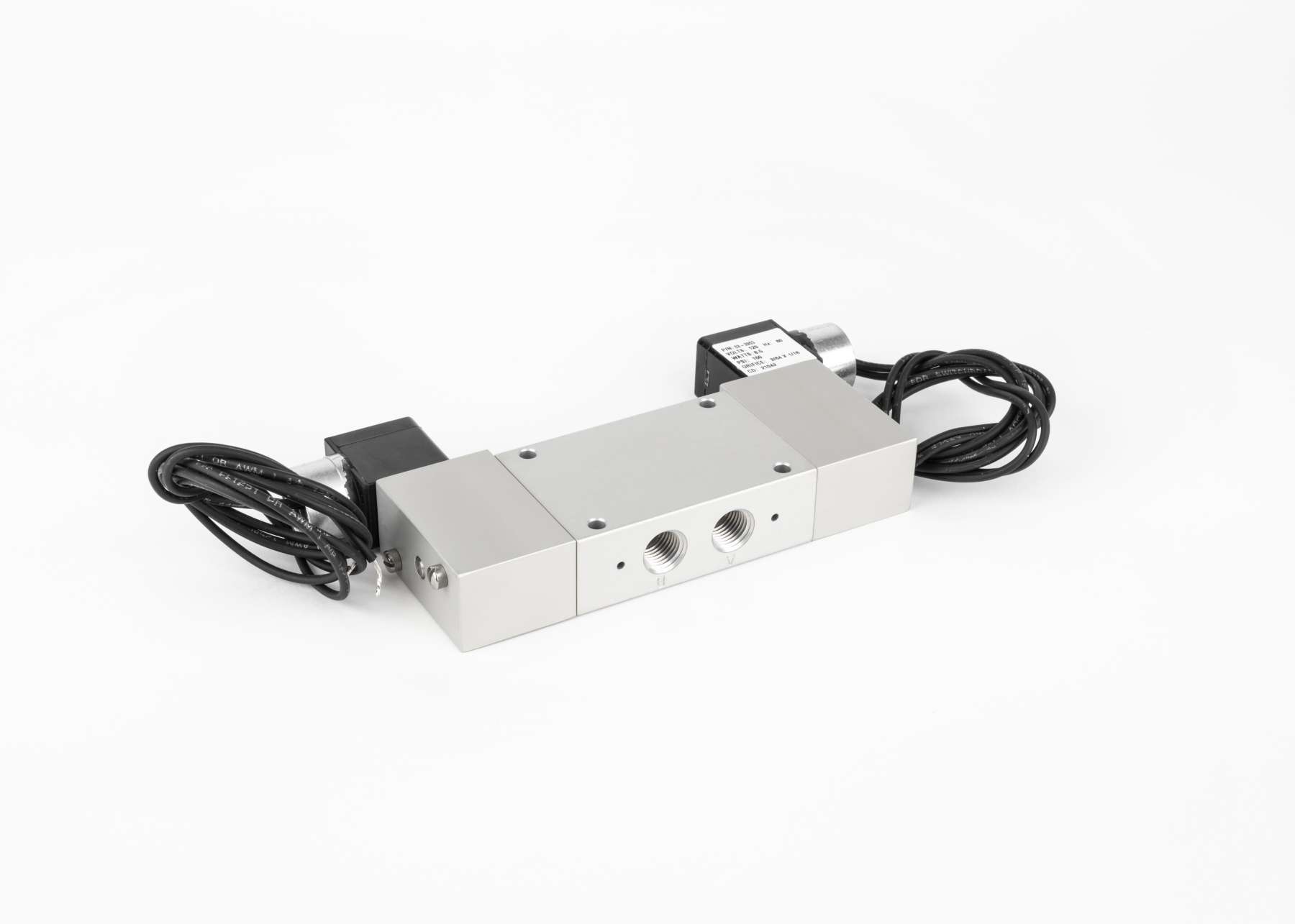

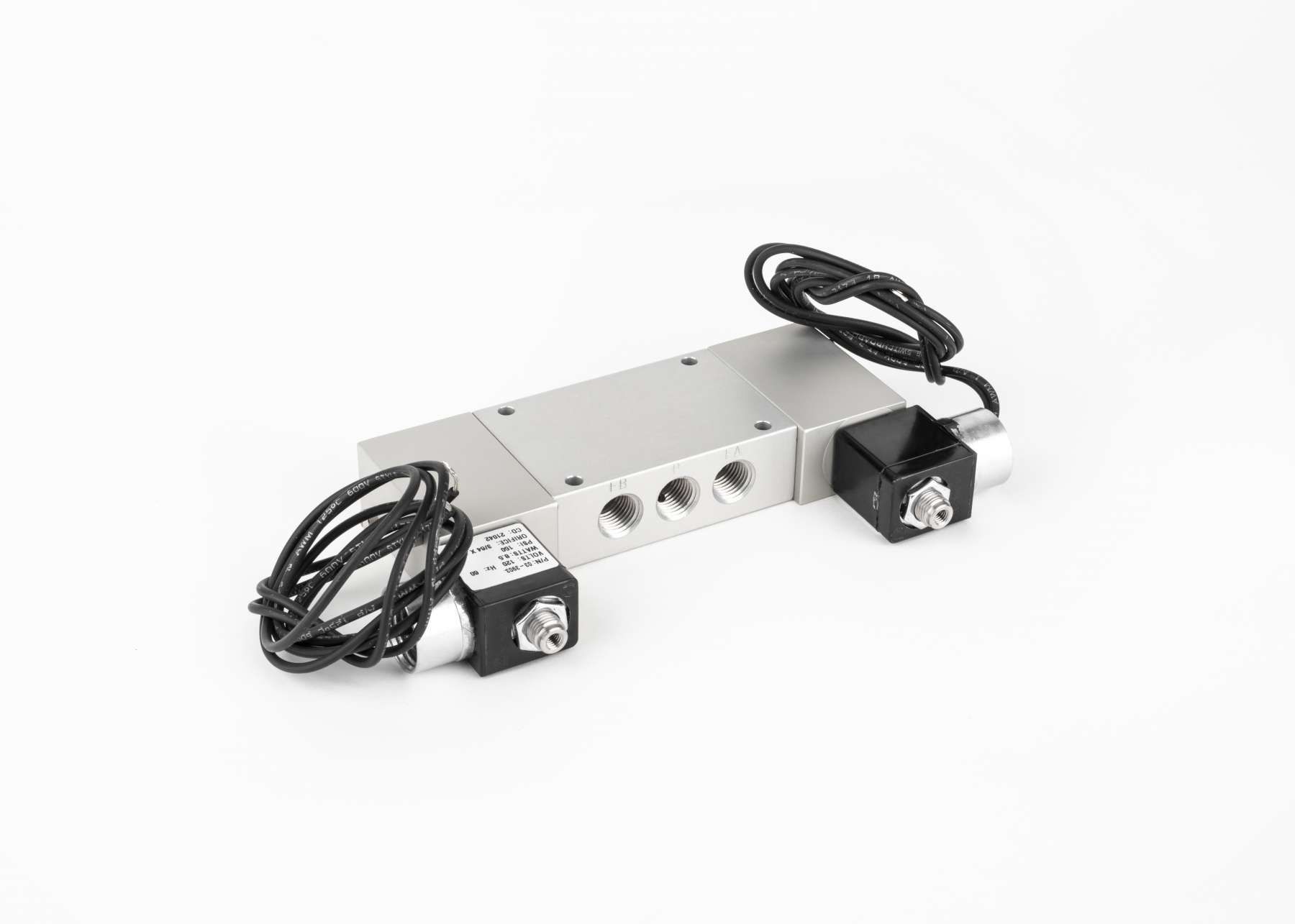

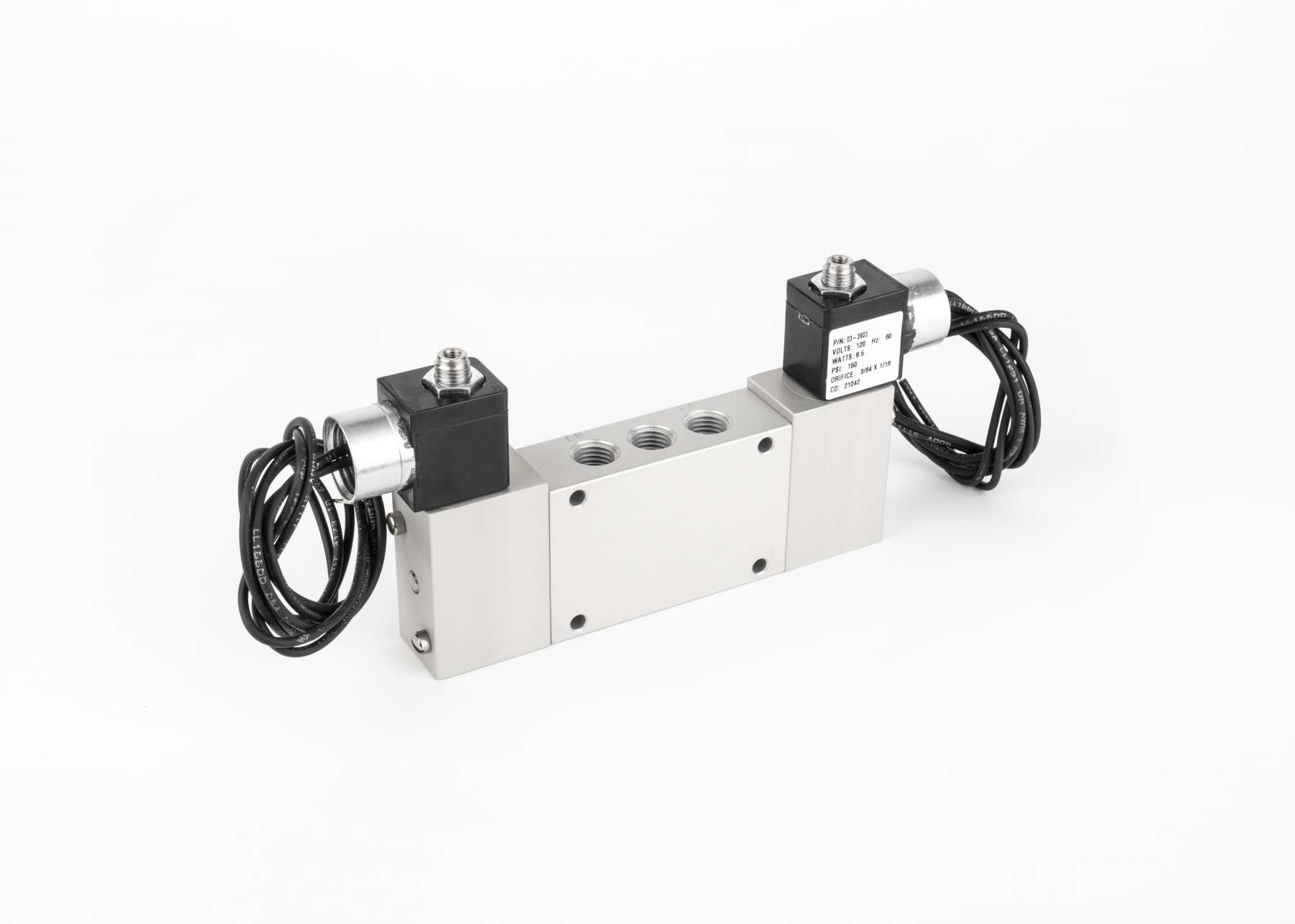

Our Mini 1 valves feature a high-flow and compact design with bodies only 1 inch thick and 2 inches wide, they produce a flow capacity of 1.0 Cv. This 4 way Mini-1 with Dual Solenoid/Conduit Connection allows for an electrical interface with your pneumatic system. These valves feature fast response times due to the spool’s short travel distance of only 0.30 inches. The spool is made from durable, corrosion-resistant 416 stainless steel with a high precision finish for maximum seal life. Our unique seal-spacer design yields optimum sealing with minimal squeeze which provides consistent, low friction shifting. The balanced spool design provides for true multipurpose capability, allowing the use of dual pressures, vacuum, or other non-standard piping of the ports when using an external pilot signal. Self-lubricating Buna-N seals coated with PTFE based grease allow operation with minimal lubrication at any cycle rate. Non-lube service is acceptable at cycle rates of 18 CPM or less. Mini 1's feature solenoids with a low current draw and a choice of 1/2"conduit or DIN style connections. Available in a single solenoid or double solenoid configuration with a wide range of AC and DC voltages, including explosion-proof versions.
