Product Profile

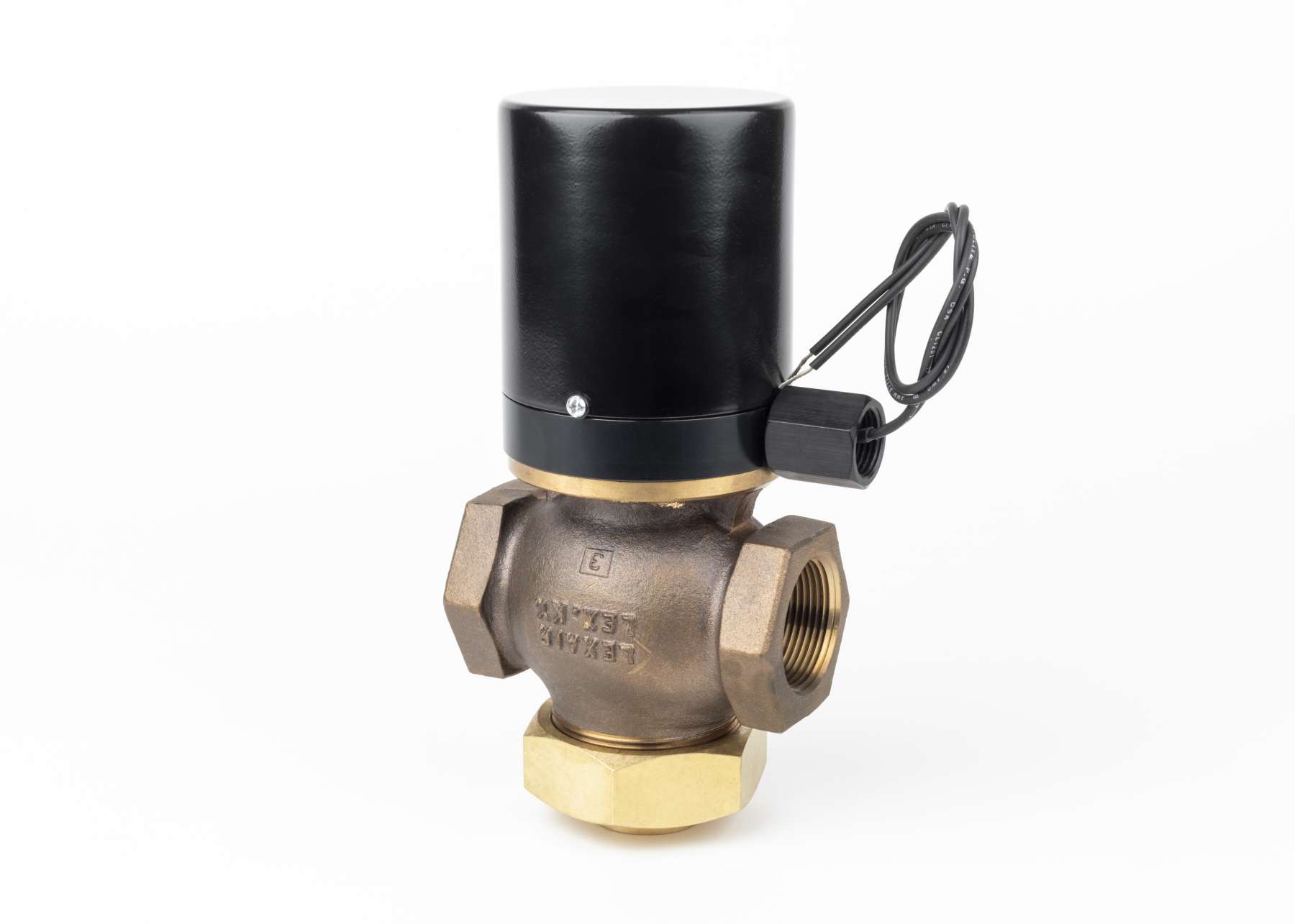

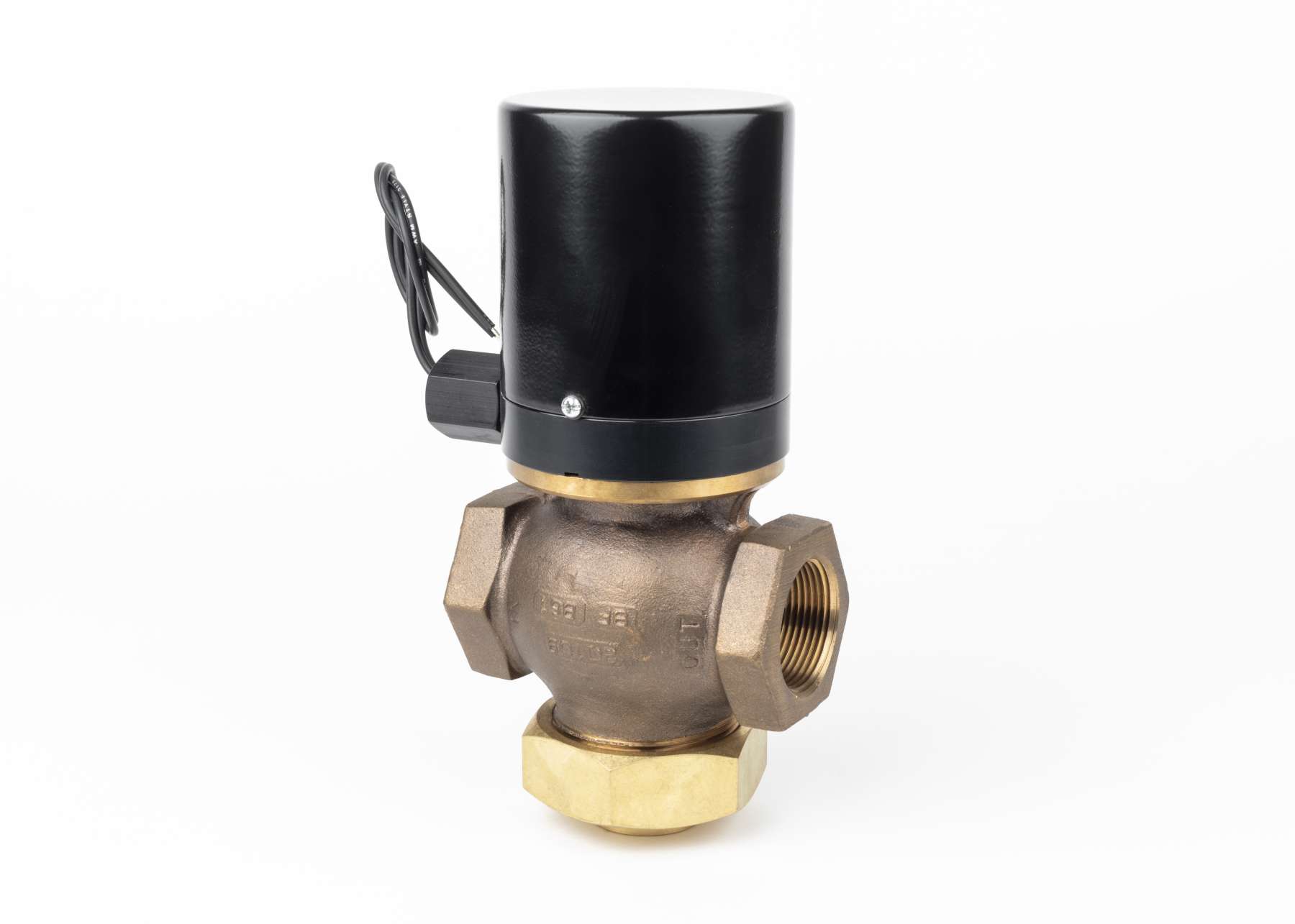

Our 1 1/4" Bronze Star™ direct solenoid design is ideal for use in water or oil applications where internally piloted valves will not operate or where pilot media is not available. Low maintenance and high reliability are key characteristics of the Bronze Star™ line due to the elimination of any small pilot orifices that can clog during operation. Pulse width modulation provides a low holding current to minimize coil heat rise and power consumption. This reduces operating costs and provides virtually trouble-free operation for over a million cycles.
- Pressures up to 250 PSI are standard
- Quick response time - opens in 100 milliseconds or less
- Designed for standard 120VAC 50/60 Hz
- Optional Brad Harrison® Connector
- For Water, Oil or Vacuum service
- Easy in-line repair - saves on machine downtime
Specifications
| Solenoid Voltage |
100-125v 50/60Hz |
| Type |
2 Way Normally Closed |
| Valve Design |
Poppet |
| Bubble Tight |
Yes |
| Port Size |
1 1/4" NPT |
| Cv Factor |
17.10 |
| Actuator |
Direct Solenoid Operated |
|
Model Number
|
336920-1 |
| Body |
Cast Bronze (ASTM B-61) |
| Internal Parts |
Brass and Stainless Steel
|
| Standard Seals |
Buna-N
*Poppet Seal is Viton® for better wear characteristics and longer life.
|
| Optional Seals |
- Molybdenum Disulfide Coated Buna-N
- Viton®
- Chemical / High Temp Service
- Ethylene Propylene
(For further info see Seal Material document)
|
| Weight (lbs) |
9.40 |
|
Temperature Range
|
0° F to +150° F
|
| Pressure Range |
Vacuum to 250 PSI
|
