Product Profile

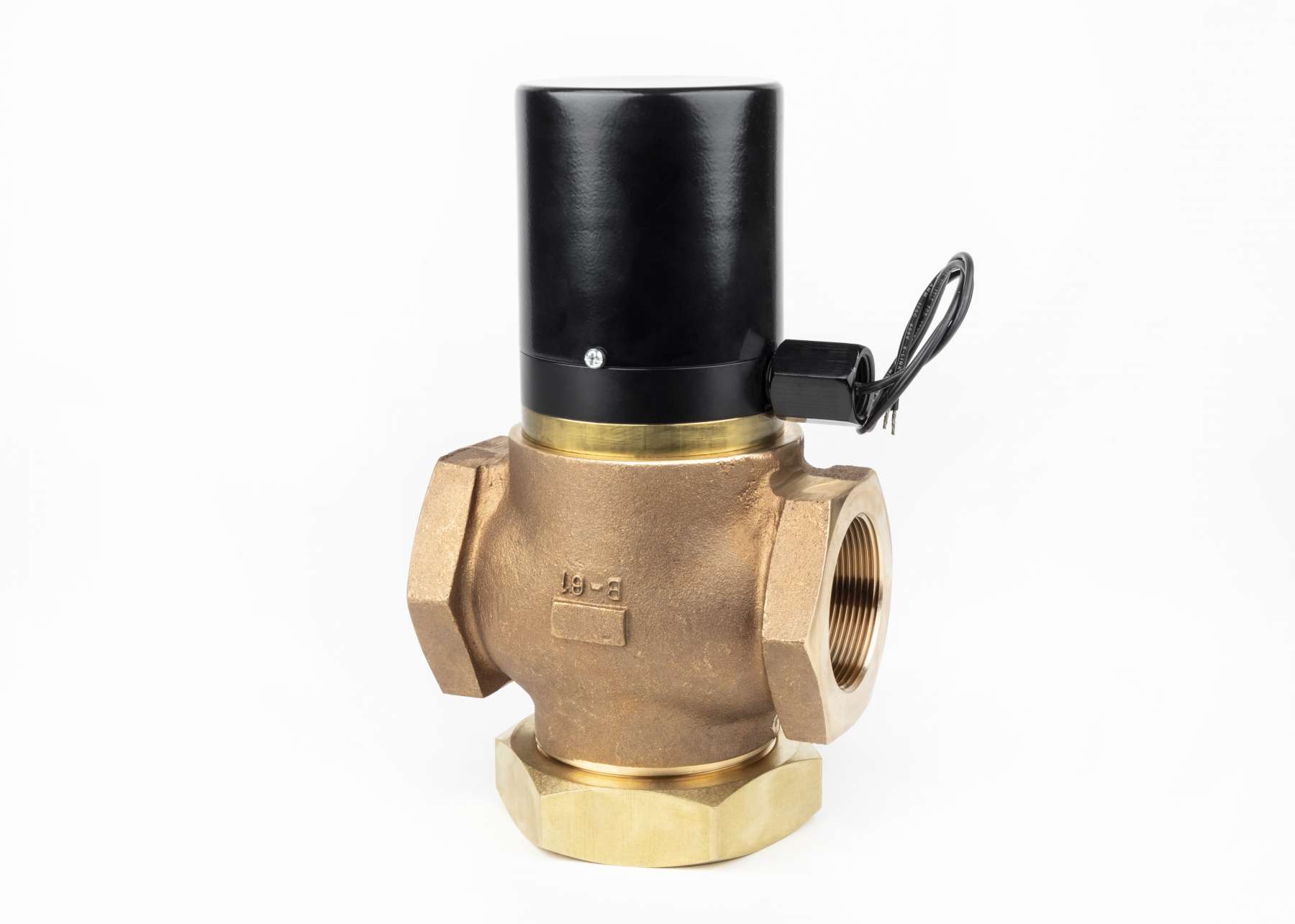

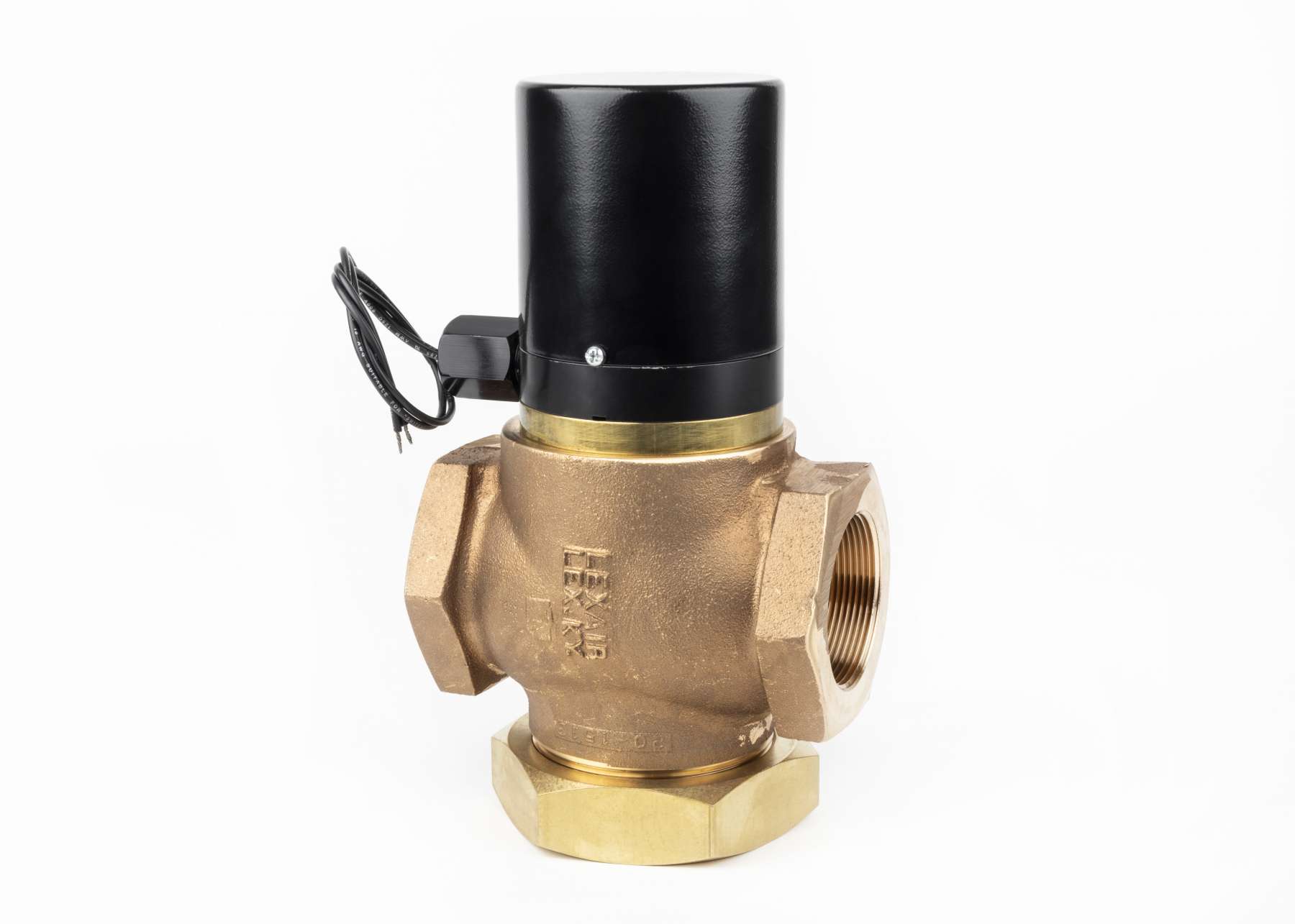

Our 2" Bronze Star™ direct-solenoid design is ideal for use in vacuum, low-pressure, or high-pressure applications where internally piloted valves will not operate or where pilot media is not available. Low maintenance and high reliability are key characteristics of the Bronze Star™ line due to the elimination of any small pilot orifices that can clog during operation. Pulse width modulation provides a low holding current to minimize coil heat rise and power consumption. This reduces operating costs and provides virtually trouble-free operation for over a million cycles.
- Pressures up to 250 PSI are standard
- Quick response time - opens in 100 milliseconds or less
- Designed for standard 120VAC 50/60 Hz
- Optional Brad Harrison® Connector
- For Air, Inert Gases, or Vacuum service
- Easy in-line repair - saves on machine downtime
Specifications
| Solenoid Voltage |
100-125v 50/60Hz |
| Type |
2 Way Normally Closed |
| Actuator |
Direct Solenoid Operated |
| Valve Design |
Poppet |
| Bubble Tight |
Yes |
| Port Size |
2" NPT |
| Cv Factor |
38.00 |
|
Model Number
|
335832-1 |
| Body |
Cast Bronze (ASTM B-61) |
| Internal Parts |
Brass and Stainless Steel |
| Standard Seals |
Buna-N
*Poppet Seal is Viton® for better wear characteristics and longer life.
|
| Optional Seals |
- Molybdenum Disulfide Coated Buna-N
- Viton®
- Chemical / High Temp Service
- Ethylene Propylene
(For further info see Seal Material document)
|
| Weight (lbs) |
17.50 |
|
Temperature Range
|
0° F to +150° F
|
| Pressure Range |
Vacuum to 250 PSI
|
