Product Profile

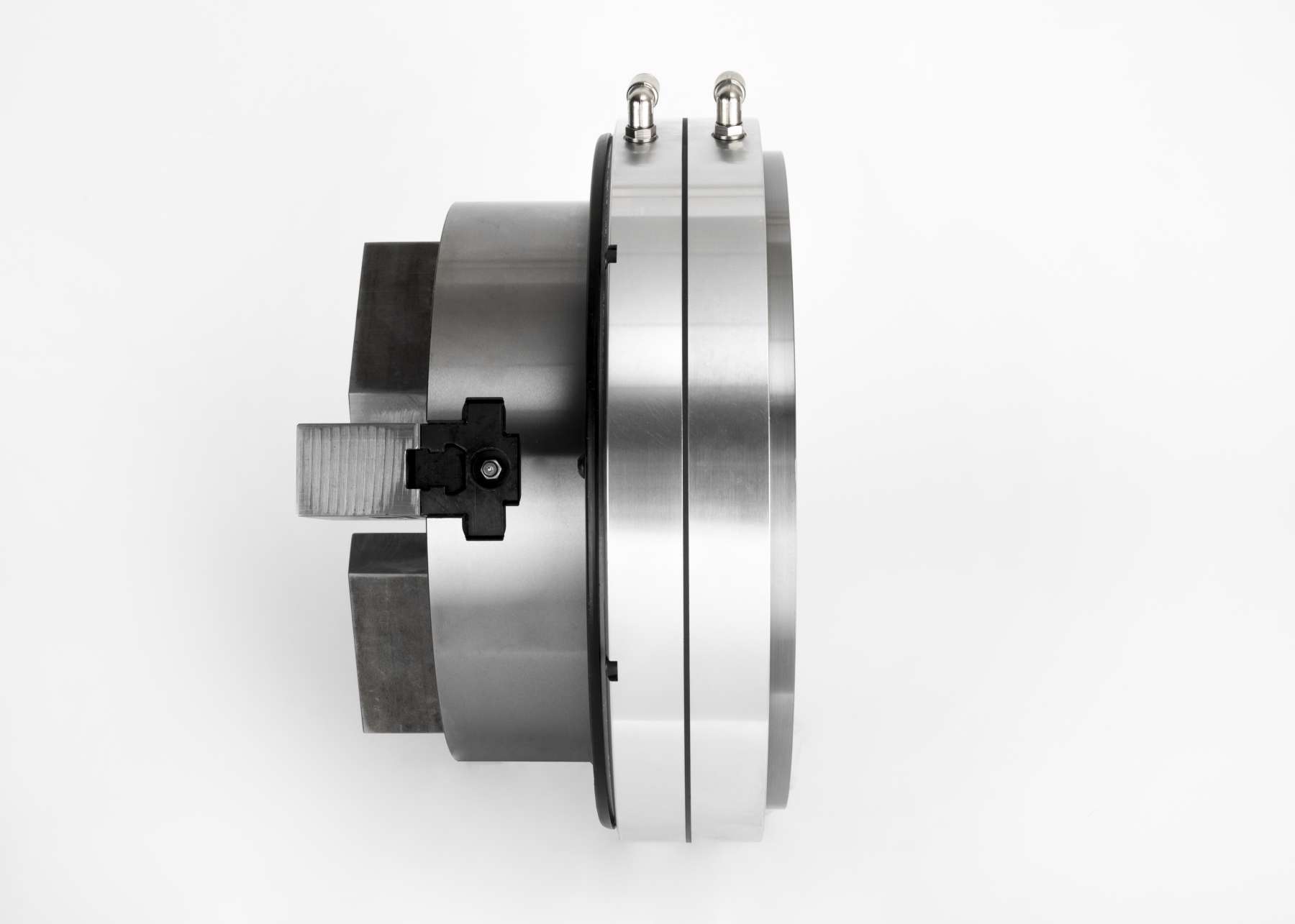

Systec’s self-contained pneumatic power chucks feature all-steel bodies that have been hardened to 62 HRC for excellent rigidity and durability. Efficiency is increased by replacing the need to manually clamp your part with pneumatic power. This Systec chuck is available in 2, 3, and 4 jaw options. Adapter plate required for turning applications - comes in A2-6 or A2-8 Sindle nose.
- Fast clamp and unclamp time – 15% faster
- Internal safety valves prevent the loss of air pressure and gripping force
- Great for main or Sub spindle mounting
- Included one set of soft Jaws
Specifications
| Number of Jaws |
3 |
| Type |
Jaw Chuck |
| Chuck Acuation |
Powered |
| Chuck Diameter |
260mm(10.23") |
| Max thru Diameter |
92mm(3.62") |
| Number of Jaws |
3 |
| Max RPM |
3500 |
| Optional Adaptor plates (sold separately) |
|
