Product Profile

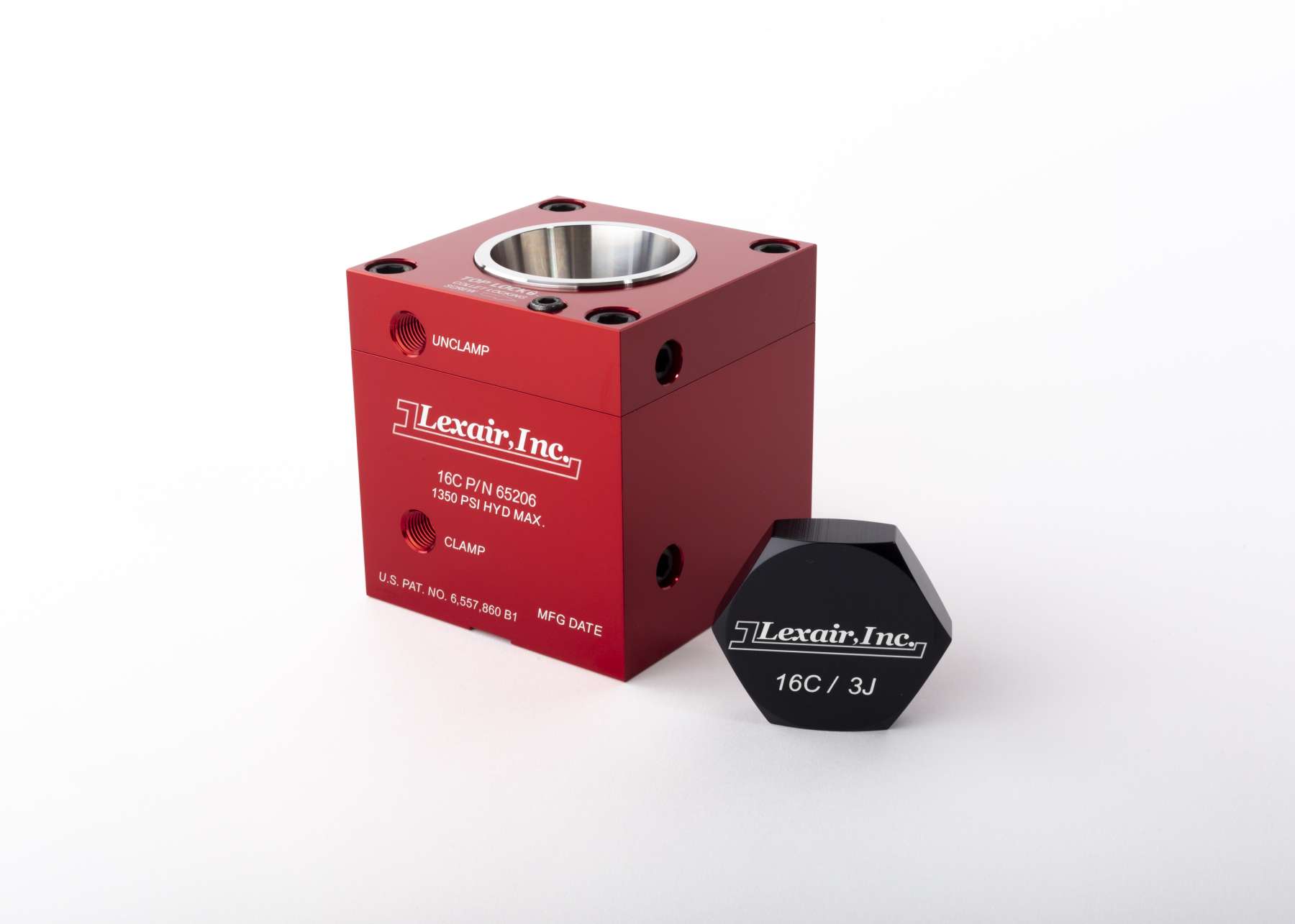

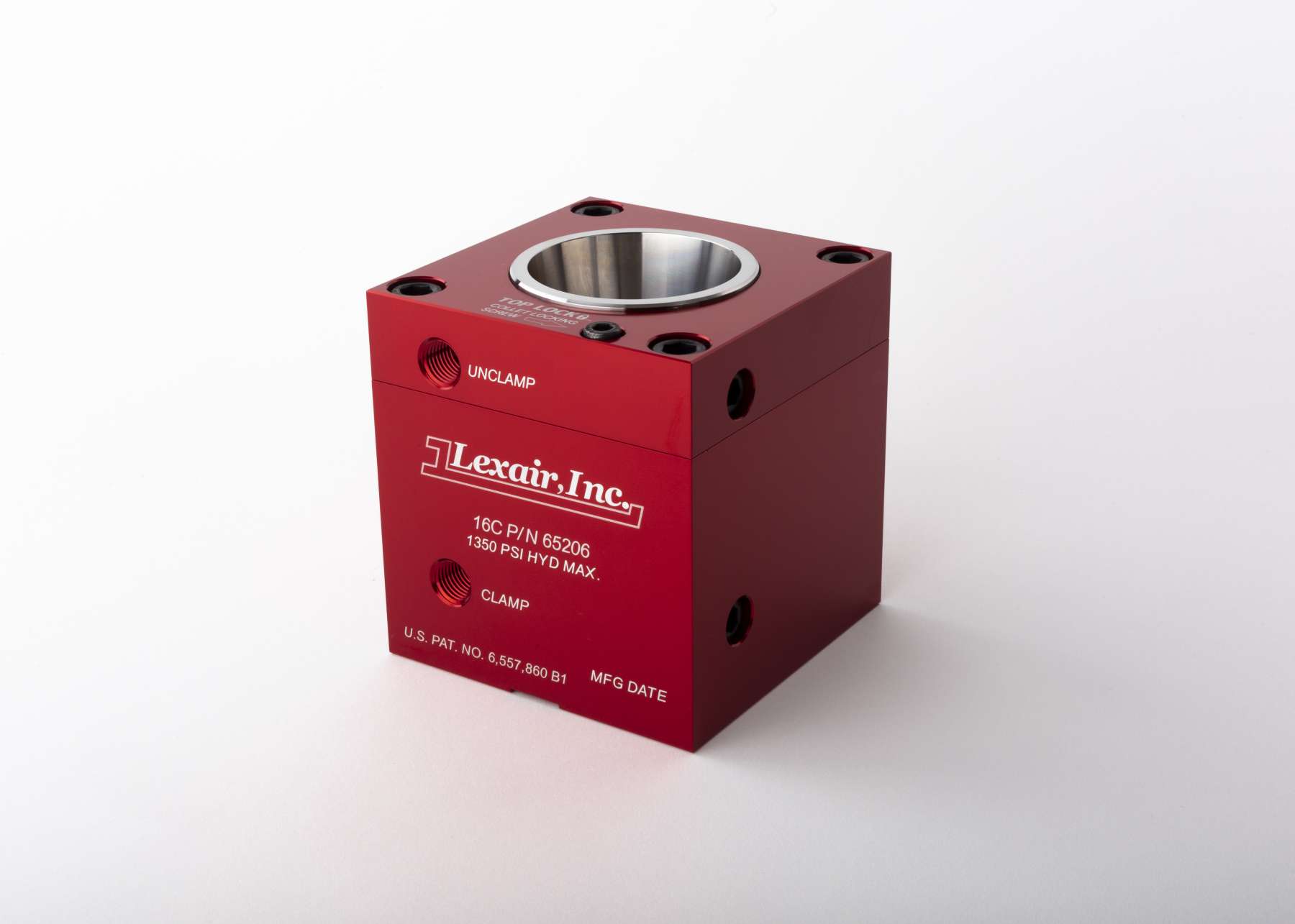

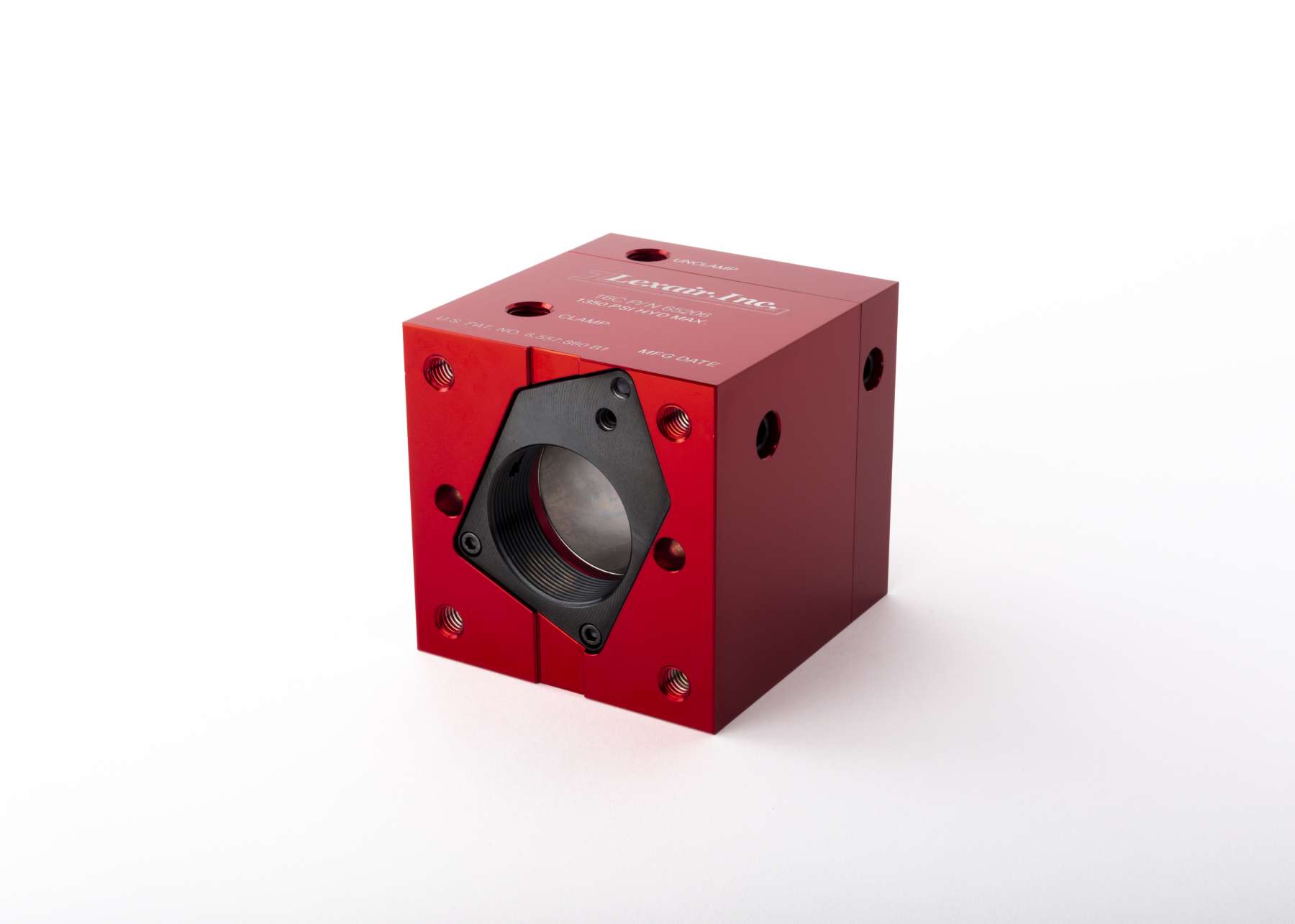

Our 16C collet closer features our patented Top Lock™ design which eliminates the need to access the side of the collet closer. Any of our collet closer systems can be combined into custom arrangements via connector bushings. This flexibility allows you to create a fixture that increases production, minimizes setups and reduces costs.
We carry a selection of standard shapes and sizes of collets; however, we offer the option to create specific designs for your machining needs.
Specifications
Max DIA round |
1.625" |
Collet Style |
16C |
Collet Design |
Dead Length |
Collet Actuator |
Low Pressure Pneumatic/Hydraulic |
Step Chuck Compatible |
No |
ID Mandrel Compatible |
No |
Self Contained |
No |
