Product Profile
Our 5C non-threaded nose wrench-operated chuck features a flat base to be used on lathes, mills, grinders, etc., fitting all your machining needs. Requires an adapter plate for rotating spindle equipment. The manual operation eliminates the drawtube and cylinder. These units are ideal for use on hybrid CNC/manual lathes.
- Carry a wide range of adaptor plates to cover all major brands and types

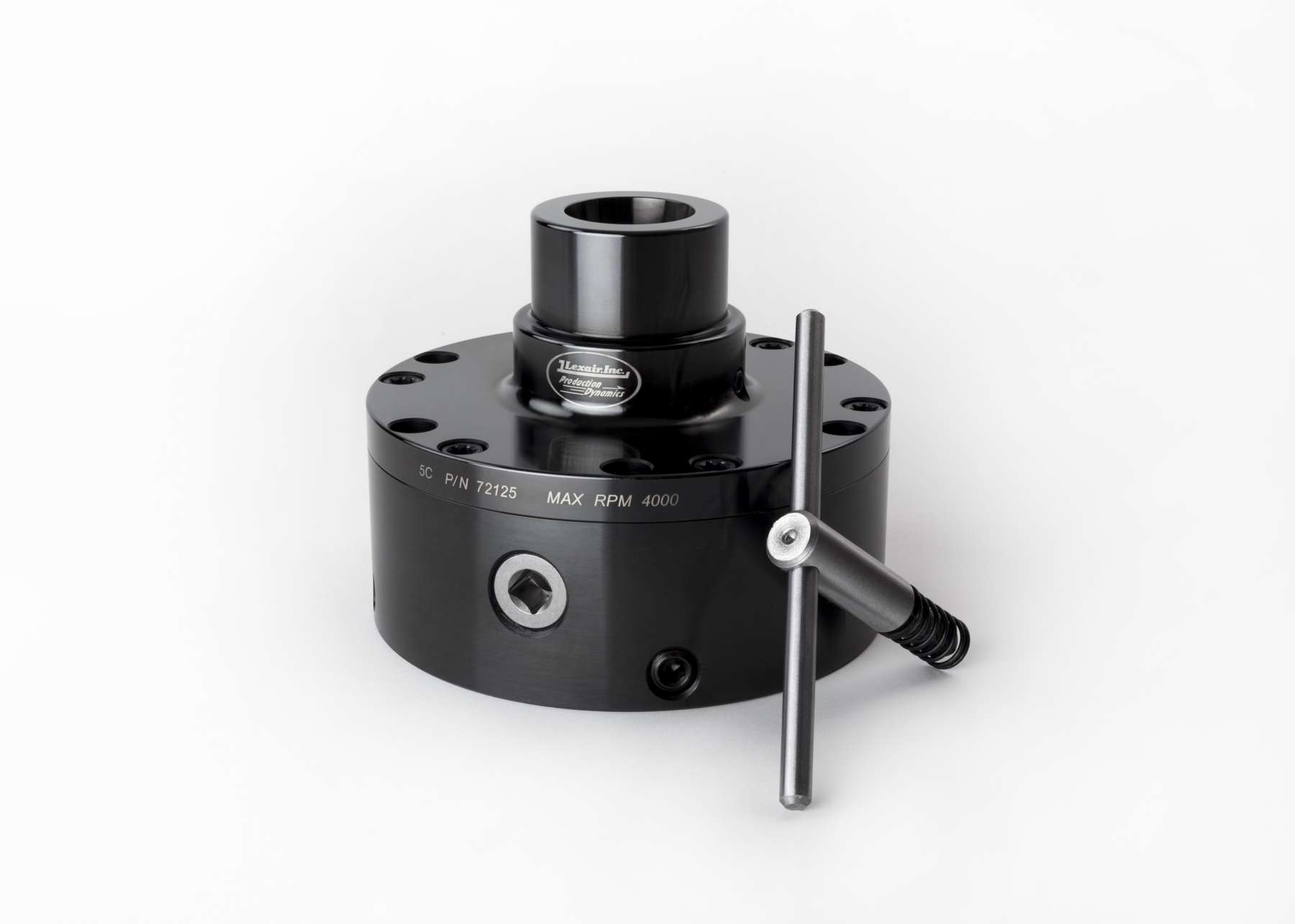

- Includes both chuck wrench and collet wrench
Specifications
| Max Thru Diameter |
1.062" |
| Chuck Diameter |
6" |
| Type |
Collet Chuck |
| Chuck Acuation |
Manually Operated |
| Step Chuck Compatible |
No |
| Maximum RPM |
4000 |
| Collet Style |
5C |
| Optional Adaptor Plates |
- A2-4
- A2-5
- A2-6
- A2-8
- D1-3
- D1-4
- D1-5
- D1-6
- D1-8
- TH-950
- TH-951
- TH-955
- HS-357
- HS-276
|
